Technical Specifications:
Welding Type: MMA / TIG / Synergy / HF / Pulse / MIG (AC/DC)
Welding Current (A): 10 – 200
AC TIG Current: up to 200 A
DC TIG Current: up to 170 A
Electrode Diameter (mm): 1.6 – 5.0
MIG Wire Diameter (mm): 0.6 / 1.0
Generator Connection: 8.5 kW
Weight (kg): 8.6
Power Supply: 230V single-phase
Insulation Class: F
Cooling: Enhanced with fan
Dimensions (mm): 490×220×400
Description:

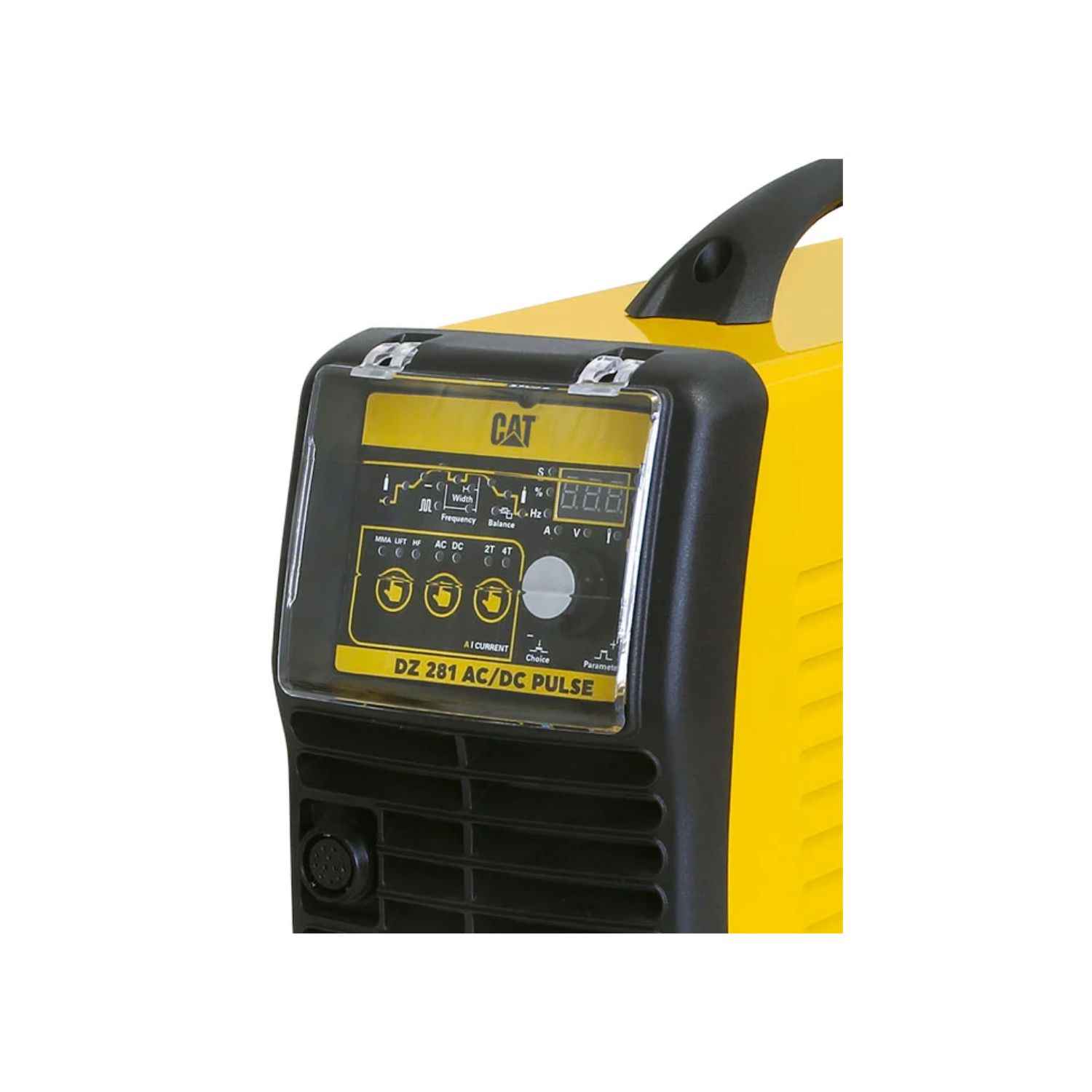

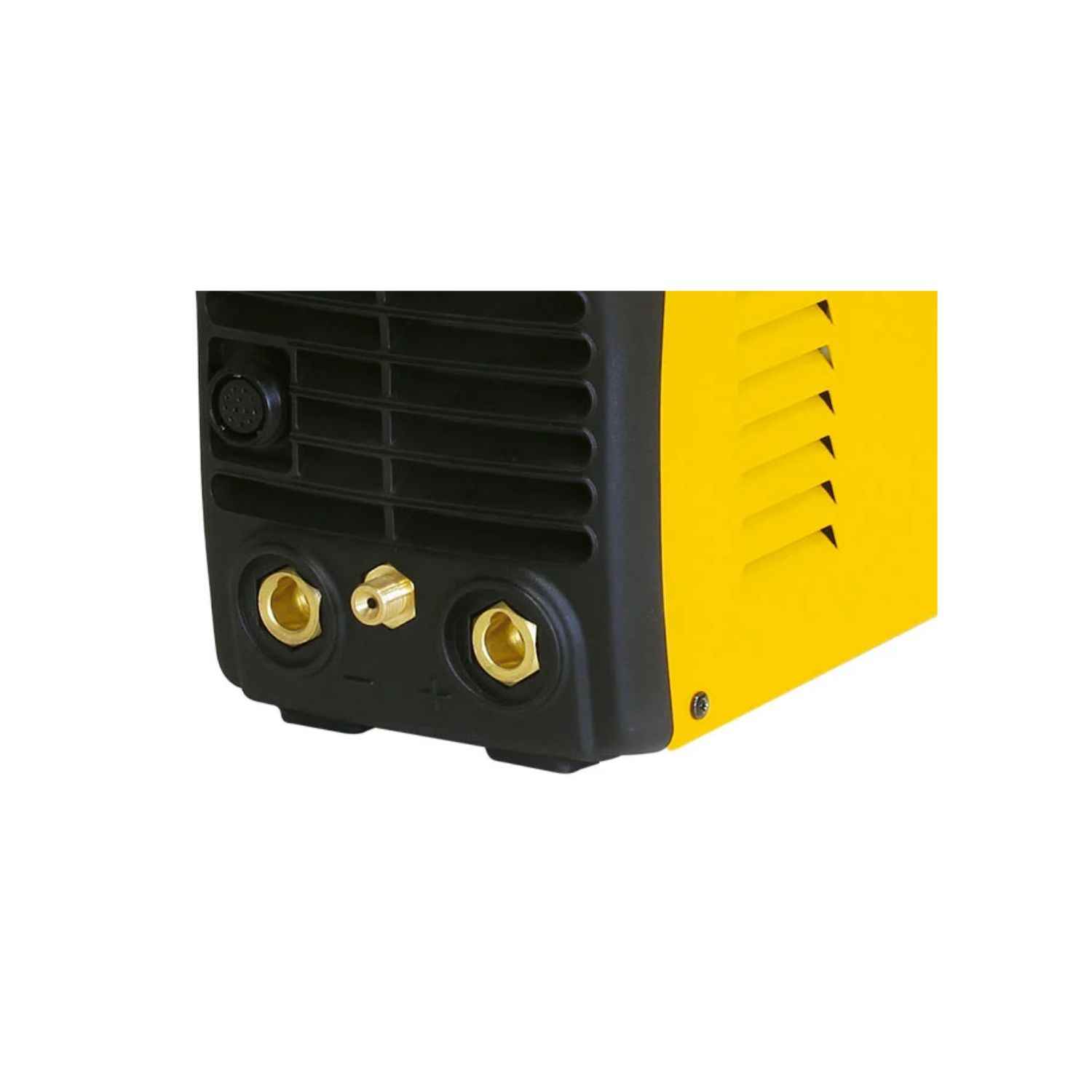

The CAT DZ281AC/DC Pulse is a professional inverter welder, ideal for TIG AC/DC welding of aluminum, thin and noble metals, while also supporting MIG, MMA, and Synergy functions. Thanks to the pulse operation capability (Pulse TIG), it offers even greater control in sensitive applications, reducing heat and increasing precision. Compatible with an 8.5 kW generator, it provides maximum flexibility in any field of application.
Key Features:
TIG AC/DC for welding aluminum, brass, copper, and steel.
Pulse function for sensitive joints and controlled heat.
MIG capability with adjustable wire (0.6 / 1.0 mm).
Synergy mode for automatic MIG settings.
Ideal for workshops, small industries, aluminum constructions, and shipping.
Recommended Accessories:
05-8314: MMA Electrode Clamp 300A
05-8311: TIG Clamp 4 m
05-8315: Ground Clamp 300A
